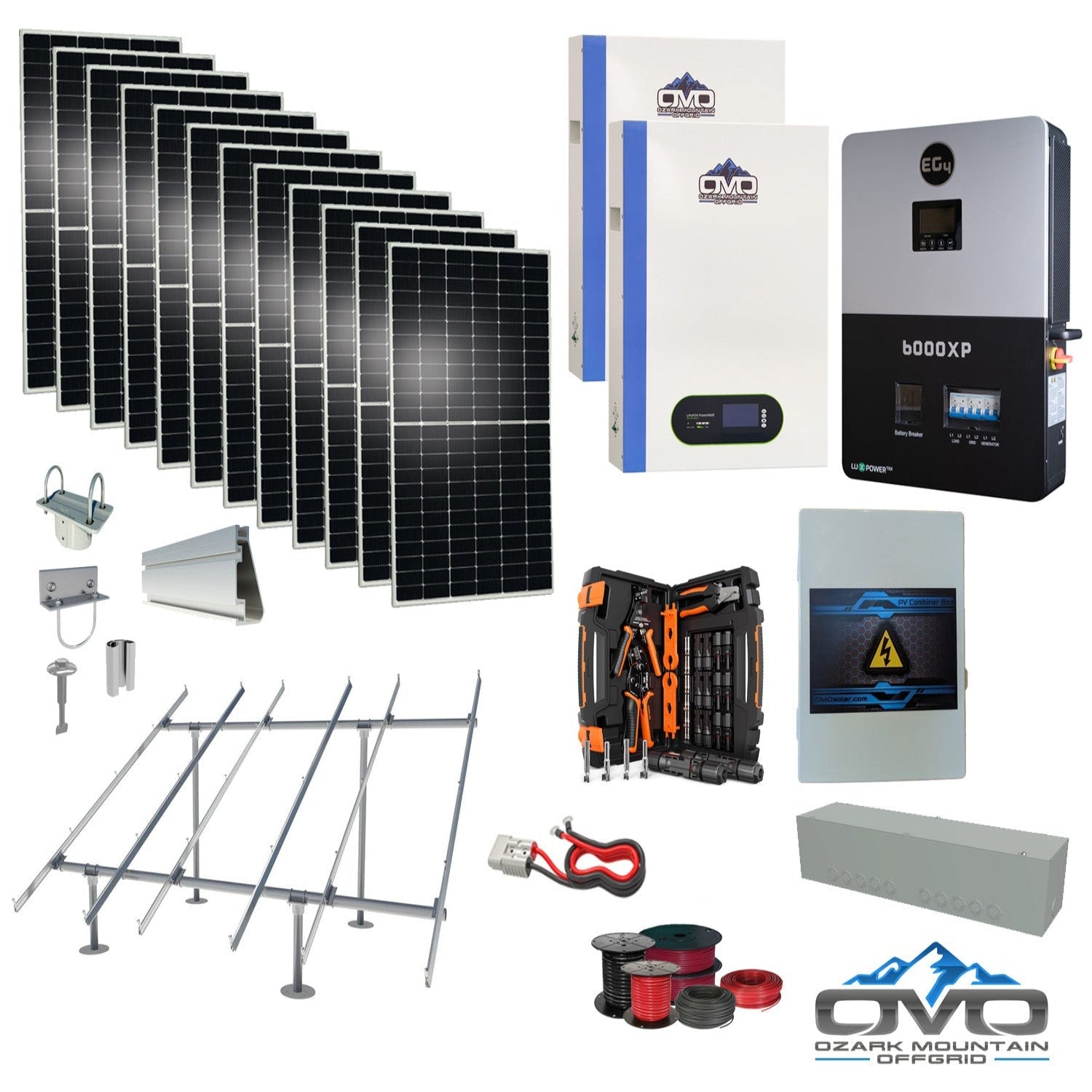

6KW Complete Offgrid Solar Kit + 6K EG4 6000XP Inverter +2x 5.12KW OMO 48V Patriot Lithium Battery + 6.6KW Solar with Ground Mount and Wiring

The 6KW Complete Offgrid Solar Kit + 6K EG4 6000XP Inverter +2x 5.12KW OMO 48V Patriot Lithium Battery + 6.6KW Solar with Ground Mount and Wiring is engineered for dependable off-grid living. Featuring the EG4 6000XP inverter and two 5.12kWh OMO 48V Patriot Lithium Batteries (10.24kWh usable capacity), this system provides strong energy storage and production for cabins, shops, RVs, garages, and small homes. With its 6.6KW bifacial solar array, the system produces approximately 29,700 watts per day based on 4.5 peak sun hours. This kit is fully expandable and can grow with additional panels or batteries as your power needs increase.

Specifications

• Solar Panels: 12× 550W bifacial double-glass panels (6,600W total)

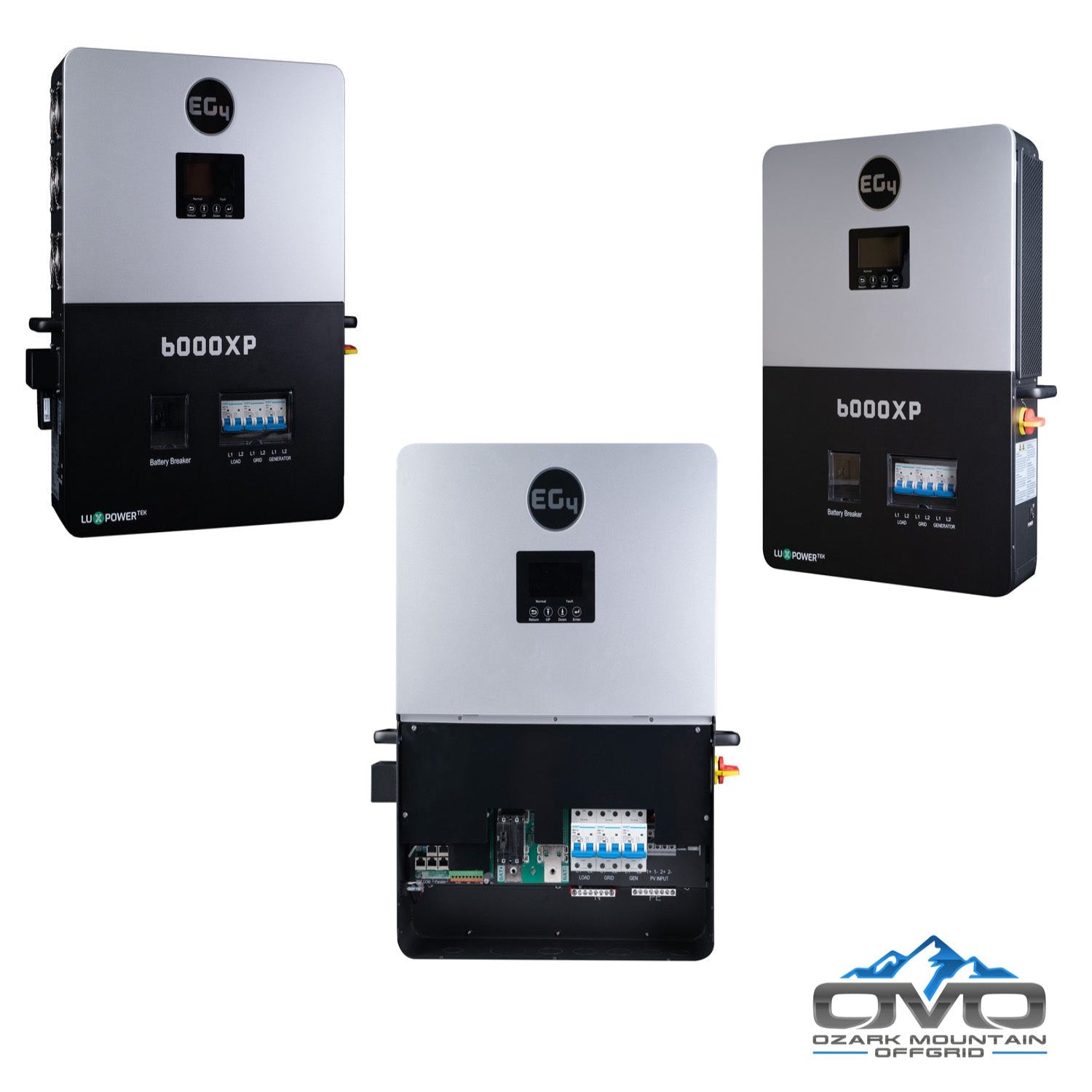

• Inverter: EG4 6000XP – 208/240VAC split-phase, 48VDC off-grid inverter/charger

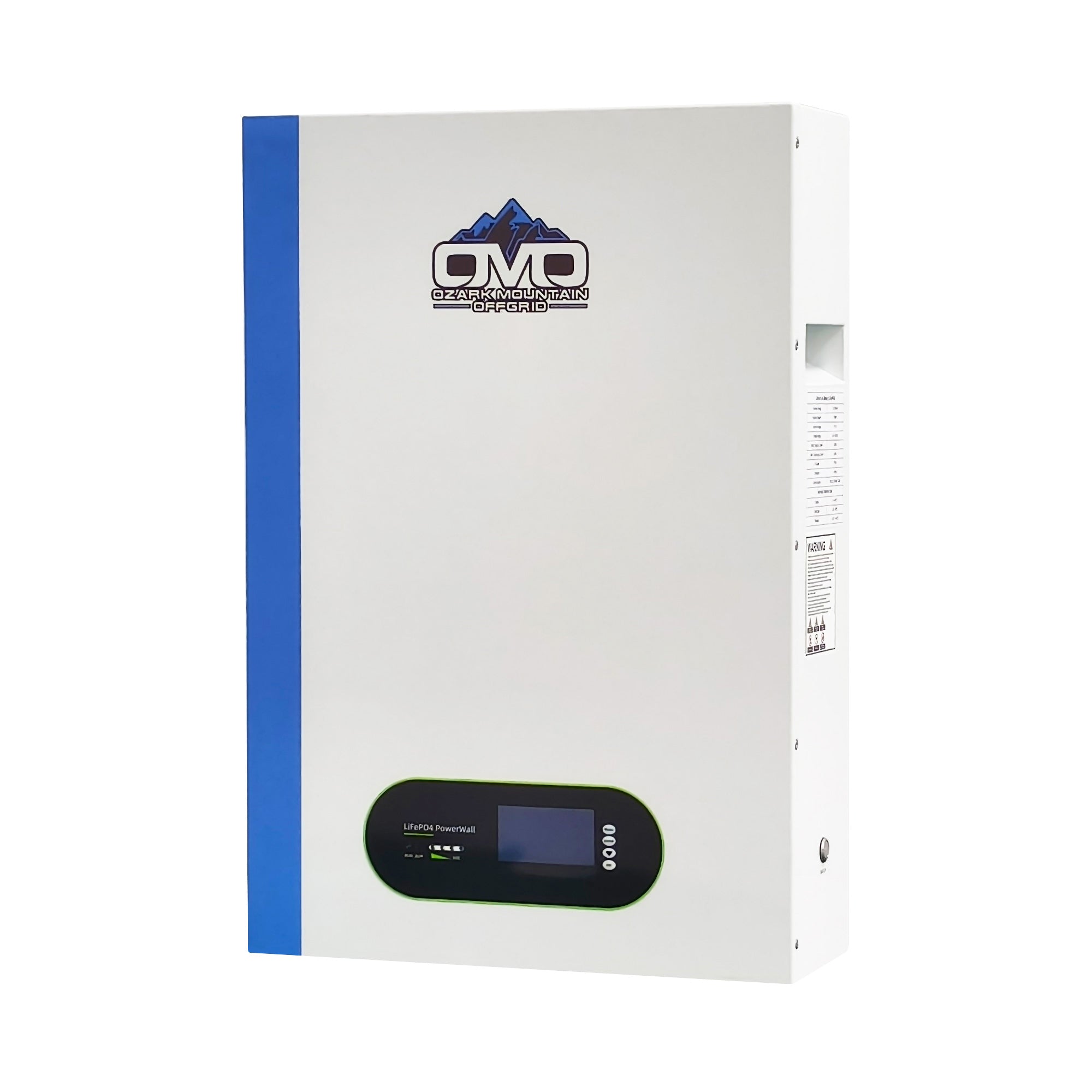

• Batteries: 2× 5.12kWh OMO 48V Patriot Lithium Batteries with wall brackets (10.24kWh total)

• Mounting System: Complete Iron Ridge Ground Mount kit (rails, top caps, connectors, fasteners, bolts)

• Combiner & Enclosures: Solar combiner box and gutter box

• Wiring: 500′ PV direct burial solar wire; 100′ 6AWG AC output/input/generator cable

• Battery Cable Set: Anderson plug inverter-to-battery cabling

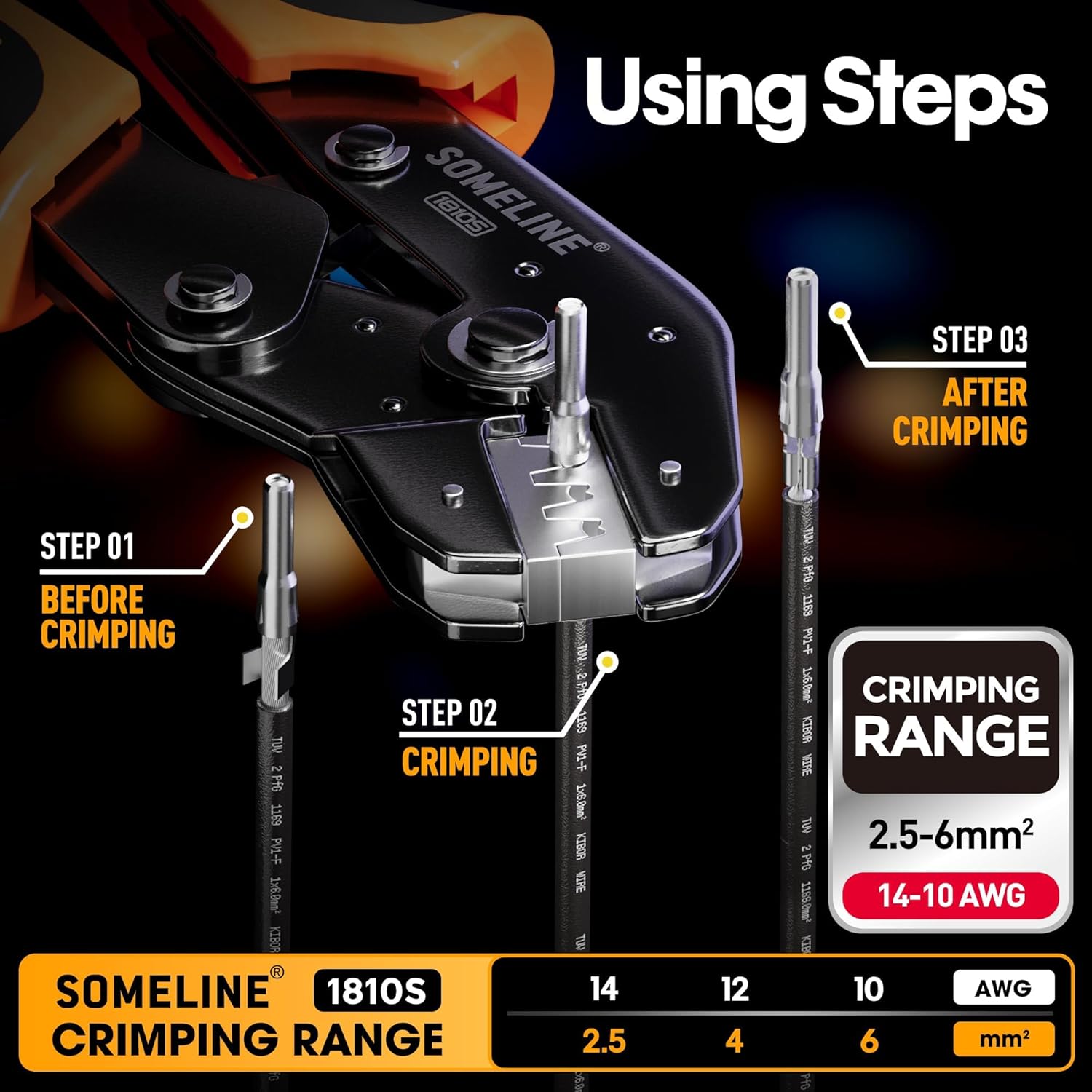

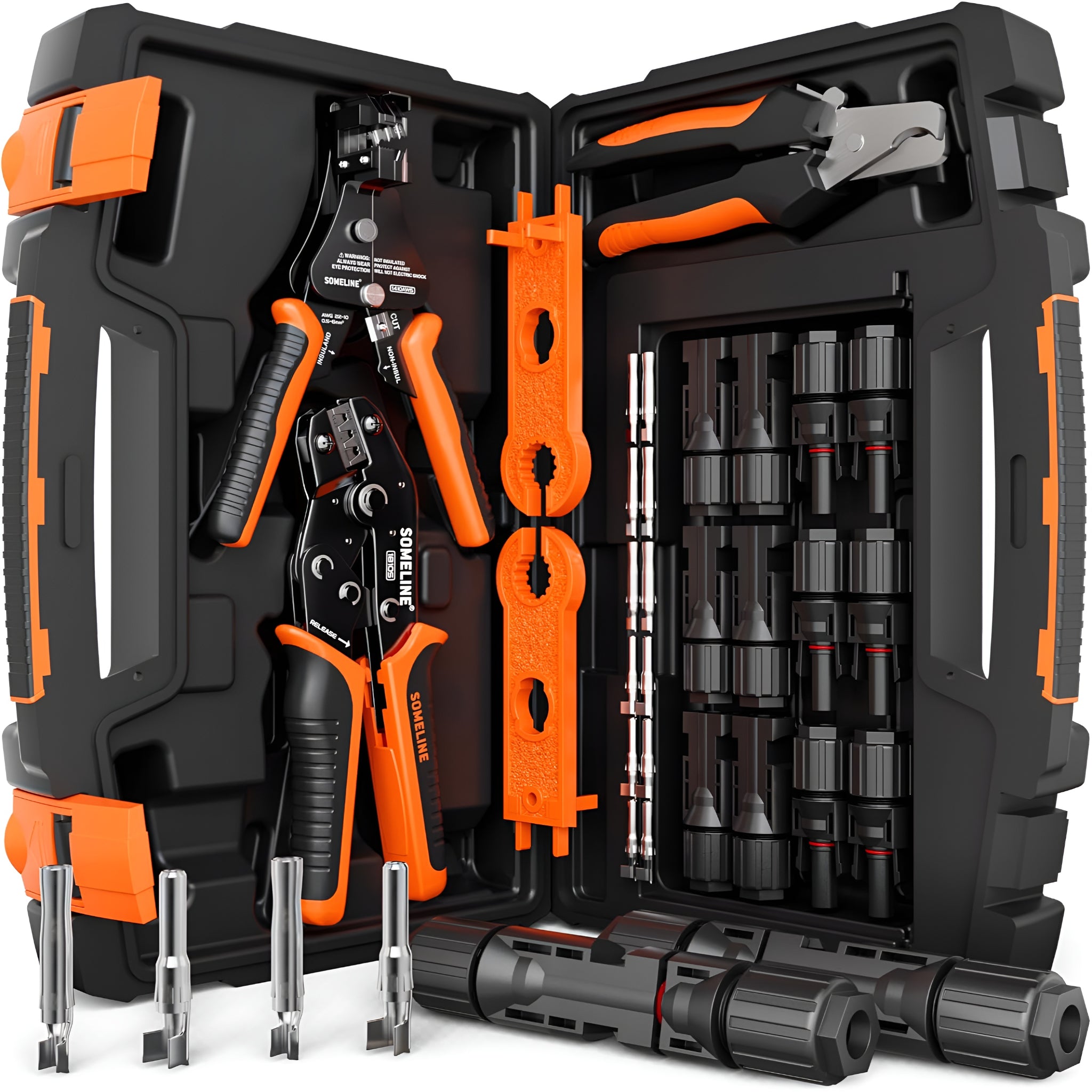

• Tools & Documentation: MC4 crimp kit and installation manual

• Battery Specification Sheet: View PDF

• Ground Mount System: Designed for 3" Schedule 40 pipe (customer-supplied)

Features

• Bifacial Solar Technology: Generates up to 25% more power from rear-side sunlight reflection

• High Durability Panels: 5400 PA snow load and 2400 PA wind load with 30-year power warranty

• Appliance Compatibility: Capable of powering wells, washers, fans, TVs, lighting, refrigerators, freezers, electronics, and smaller AC systems

• Energy Production: ~29,700W/day depending on regional sunlight

• Ground-Mount Ready: Full hardware kit included; only requires local sourcing of 3" pipe

• DIY-Friendly Installation: Suitable for homeowners with basic wiring knowledge; racking typically requires the most labor

• EG4 6000XP: High-efficiency off-grid inverter with strong split-phase output and MPPT charge capability

Maintenance

• Daily: Keep solar panels clear of debris and ensure maximum sun exposure

• Weekly: Inspect inverter readings, battery charge levels, and system performance

• Annually: Check mount hardware, tighten electrical connections, inspect grounding, and perform full panel cleaning

Warranty

• Solar Panels: 30-year performance warranty

• EG4 6000XP Inverter: Manufacturer warranty as specified by EG4

• OMO Patriot Batteries: Warranty details listed in included specification sheet
