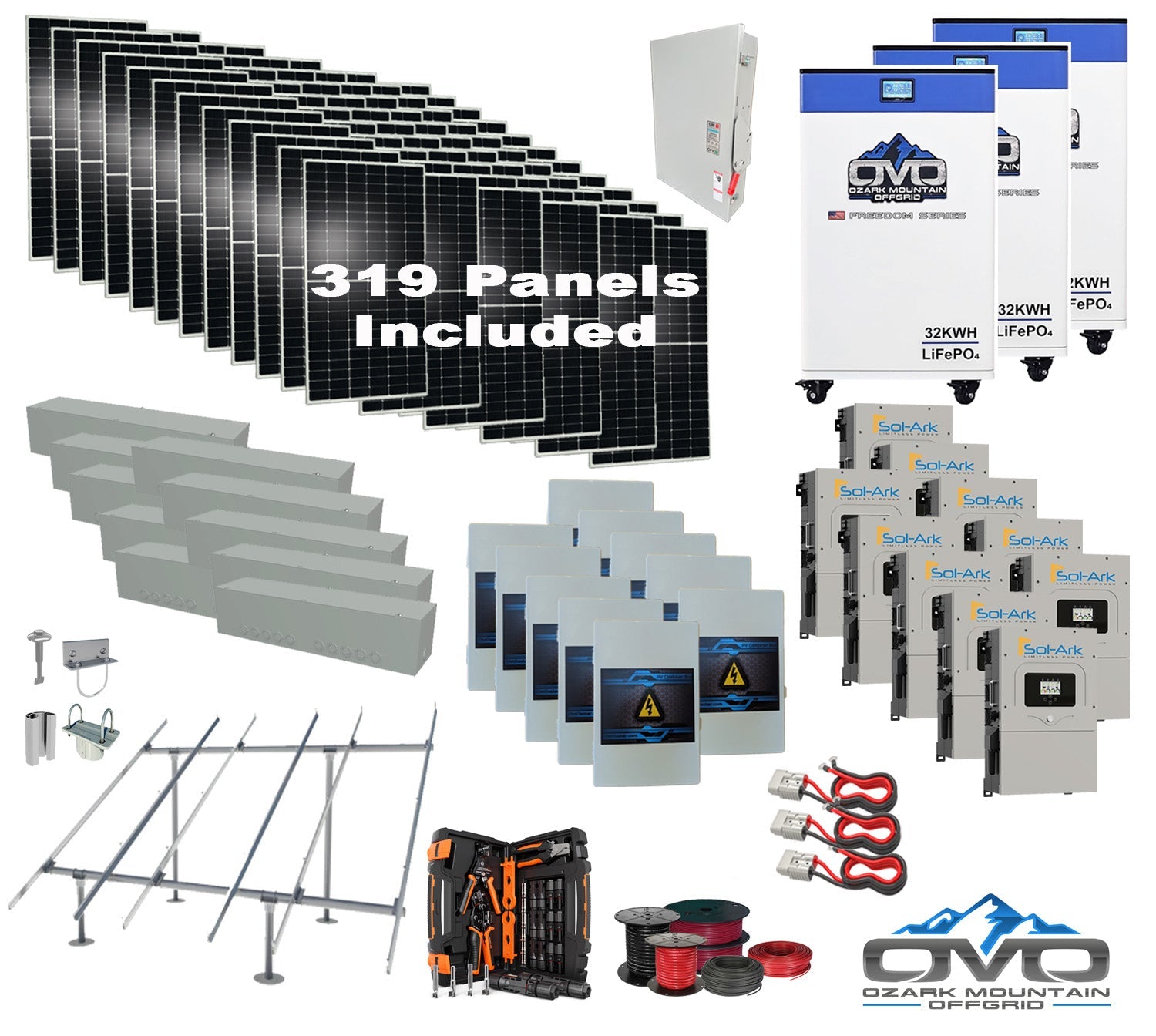

175KW Complete Offgrid Solar Kit + 10x 15K Sol-Ark Inverter + 3x 32kWh OMO 48V Freedom Series Lithium Battery +175.45KW Solar with Ground Mount and Wiring

The 175KW Complete Offgrid Solar Kit + 10x 15K Sol-Ark Inverter + 3x 32kWh OMO 48V Freedom Series Lithium Battery +175.45KW Solar with Ground Mount and Wiring  is engineered for large homes, farms, and high-demand off-grid installations. Producing up to 789,525 watts per day (based on 4.5 sun-hours), this system supports properties consuming around 23,685 kWh monthly. It is fully scalable for future expansion with additional panels or battery capacity.

Specifications

• Solar Array: 319 × 550W bifacial mono panels (175,450W)

• Inverters: 10 × Sol-Ark 15K Hybrid/Off-Grid All-In-One Inverters with built-in MPPT controllers

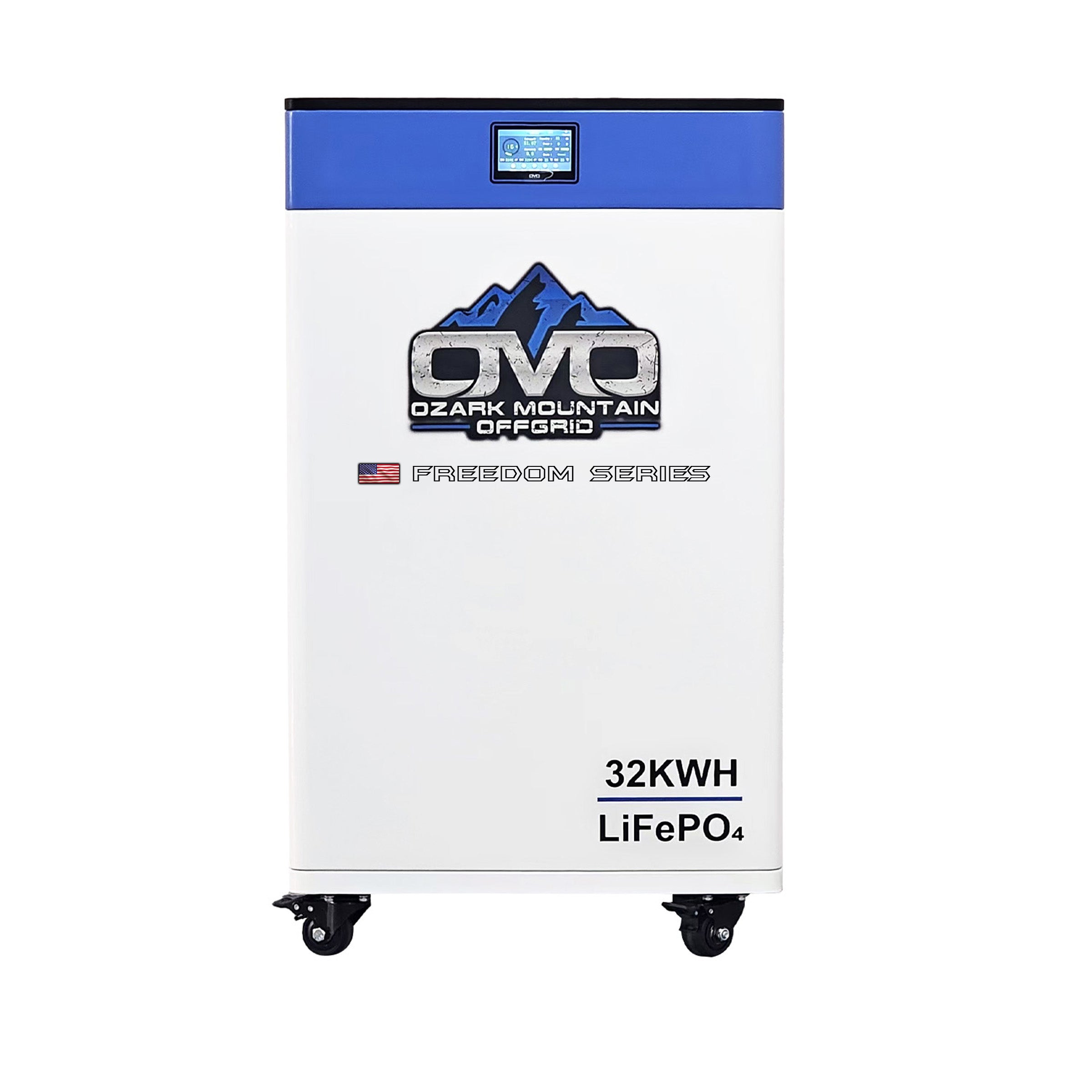

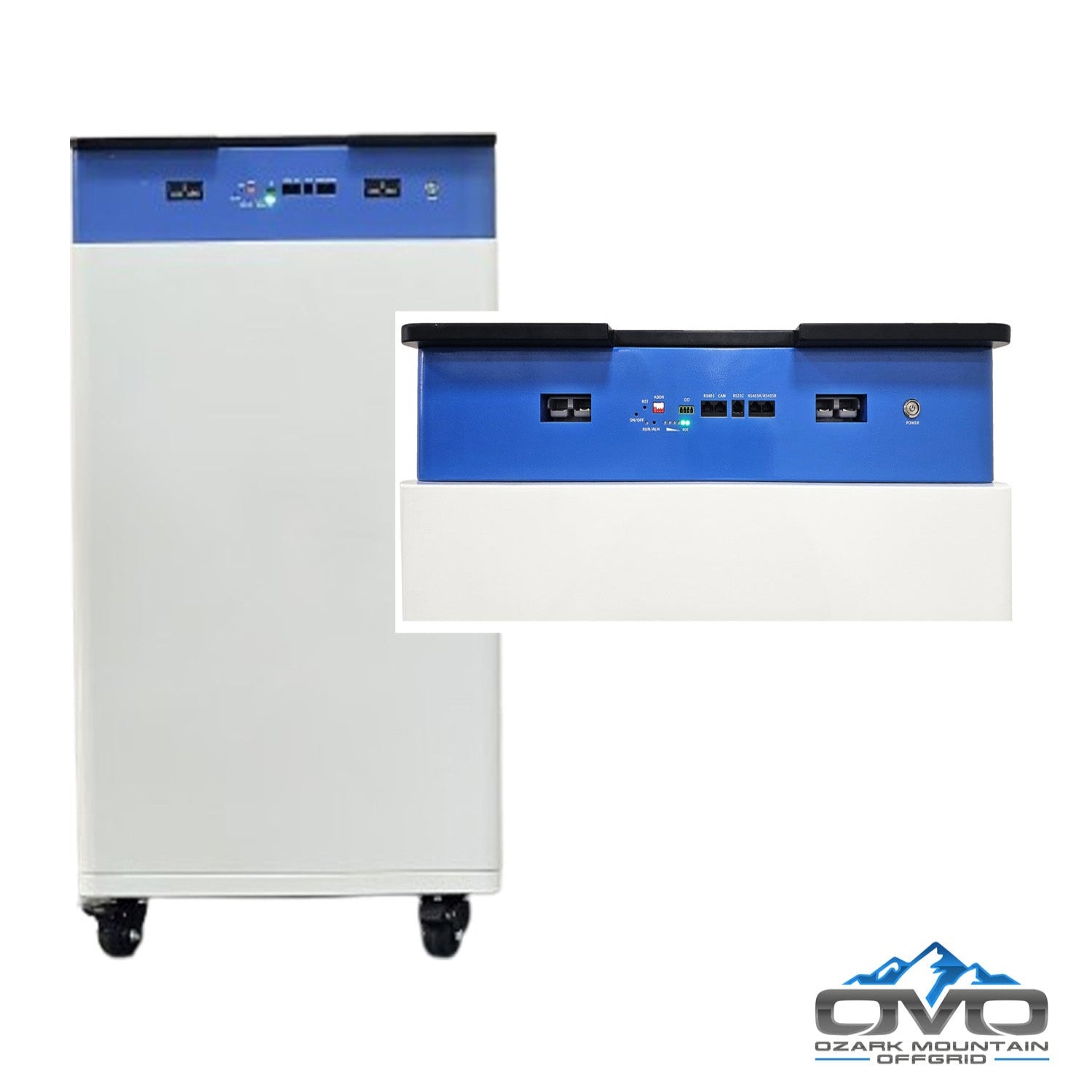

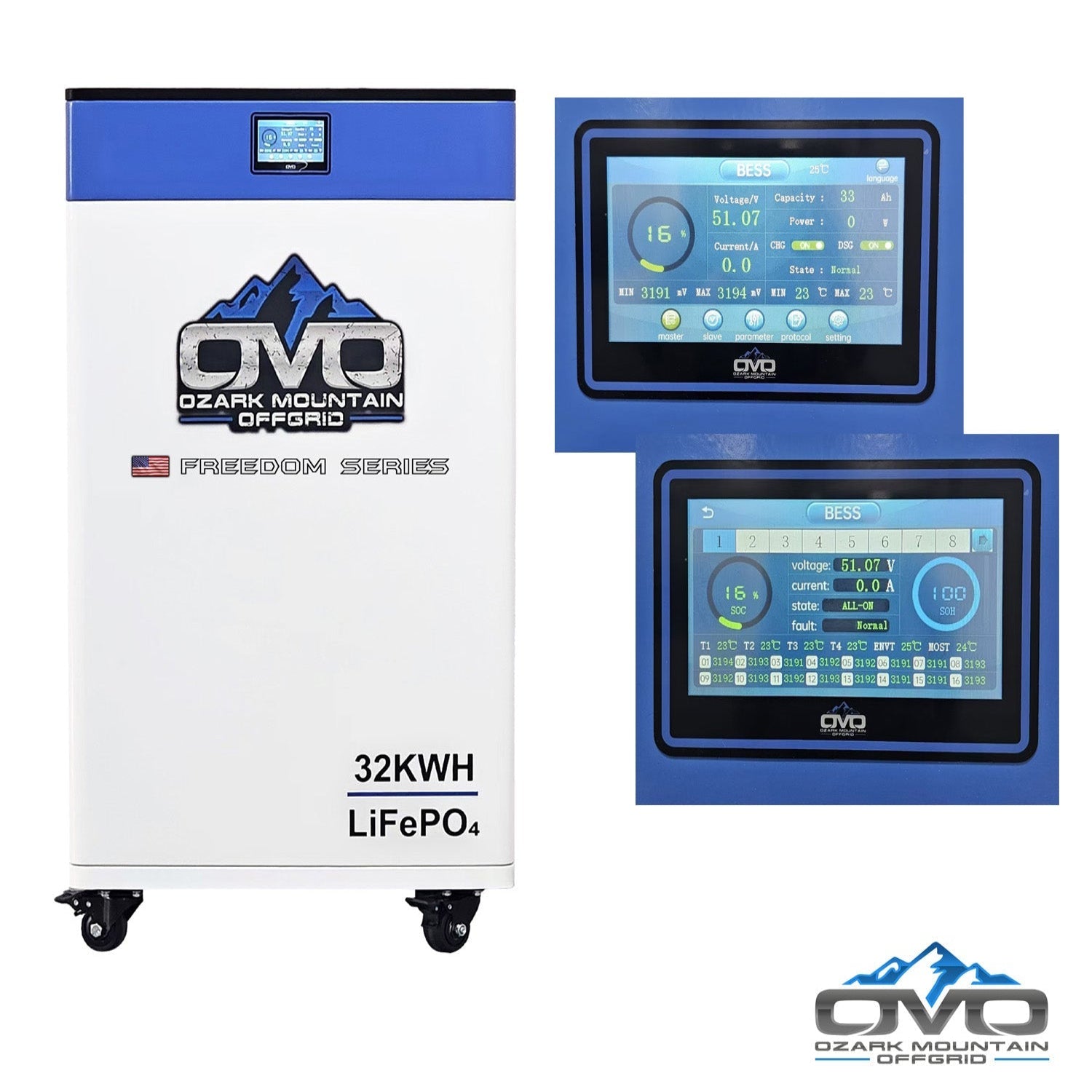

• Battery Storage: 3 × OMO 32kWh 48V Freedom Series heated lithium batteries with Bluetooth + LCD display (96kWh total)

• Mounting: IronRidge Ground Mount kit (rails, top caps, connectors, fasteners, bolts)

• Solar Wiring: 3 × 500' 10AWG MC4 solar cable spools; MC4 crimper tool set; 10 × PV combiner boxes

• AC & Main Wiring: 3 × 100' 6AWG AC/generator cable; 3 × 20' 2/0 AC main line; 10 × wire gutter boxes

• Battery Cables: 3 × Anderson plug inverter-to-battery cable sets

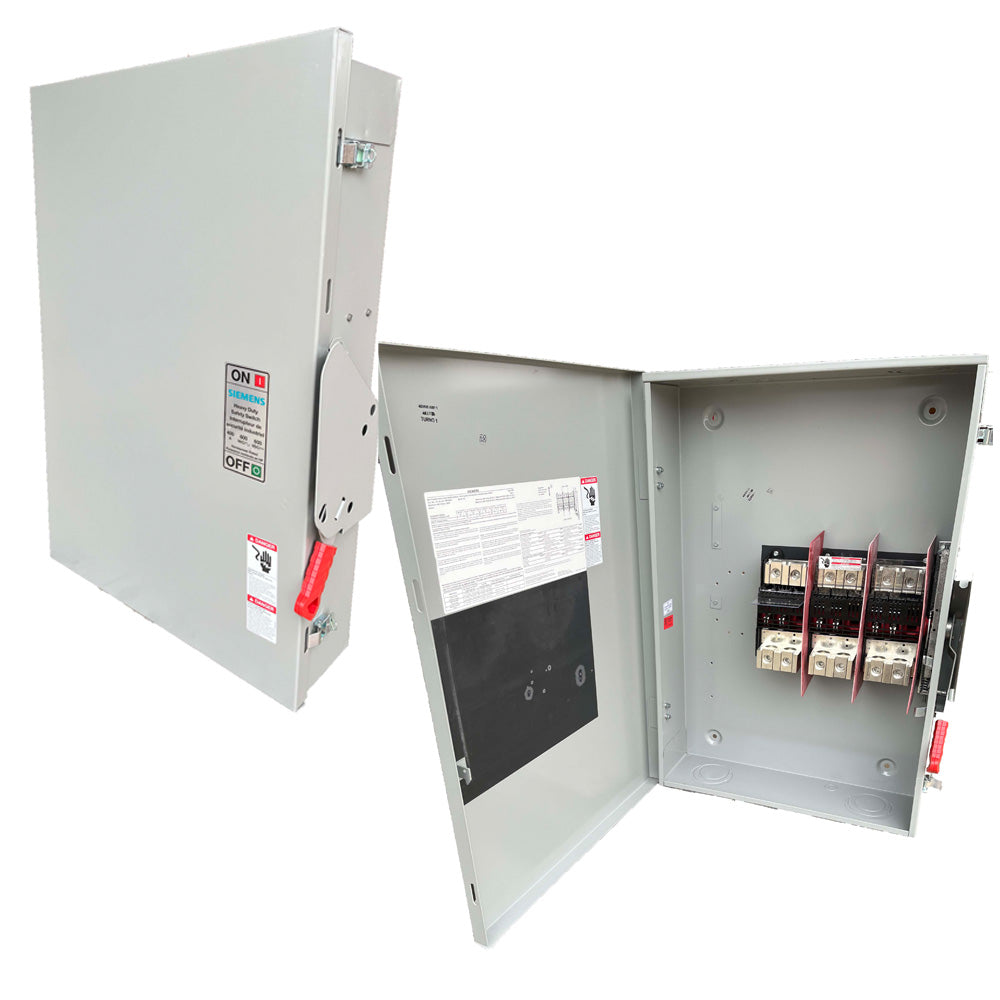

• AC Combiner: 1 × Sol-Ark combination AC combiner kit (for 2+ inverters)

• Battery Specs: Download Battery Specification Sheet

Features

• High Output Production: Generates up to ~789,525W/day for large off-grid estates

• Bifacial Panel Advantage: Double-glass, rear-gain up to 25%, 5400 Pa snow load, 2400 Pa wind load, 30-year power warranty

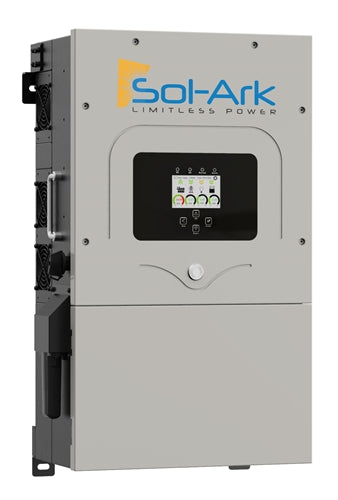

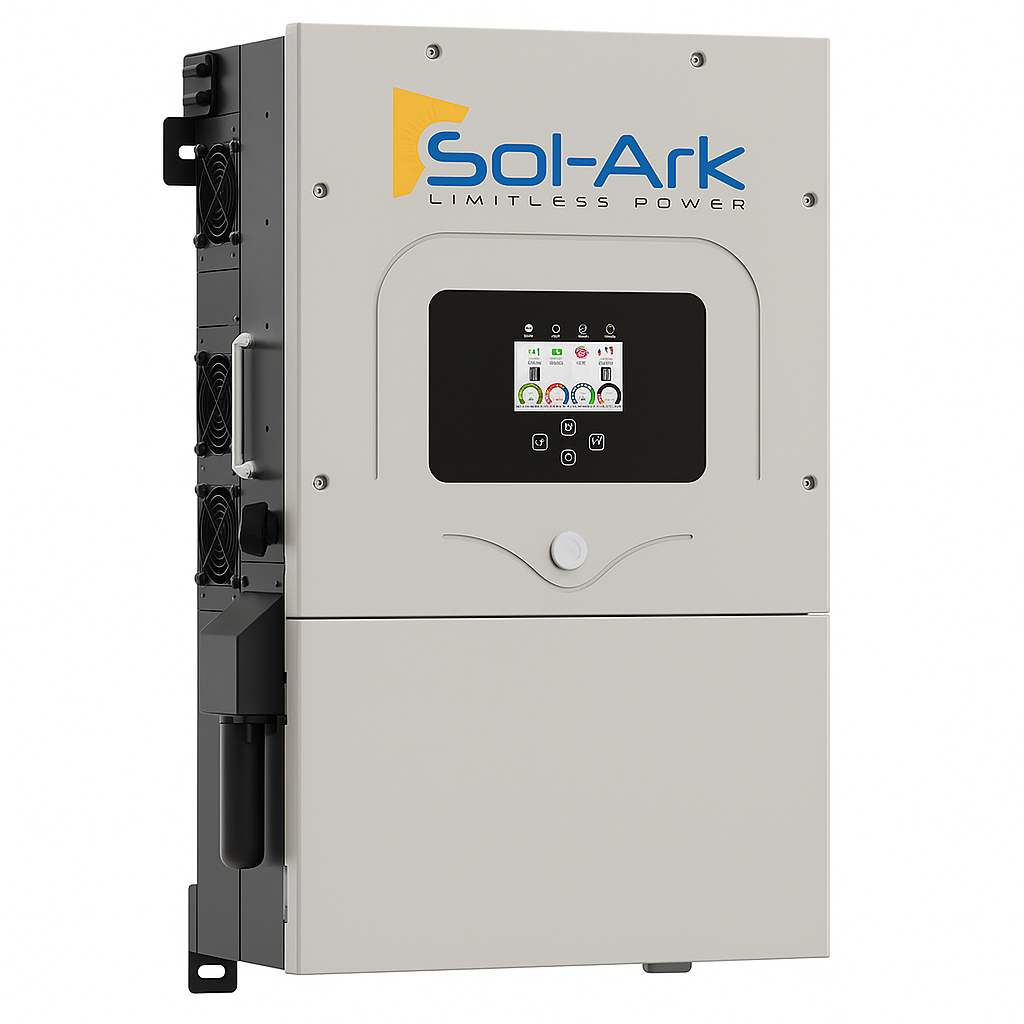

• Sol-Ark 15K Inverters: Split-phase 120/240V, grid-tie or off-grid, built-in MPPT, generator support, WiFi, 97.5% efficiency, NEMA 3R

• Scalable System: Expandable for additional batteries or solar modules as needs grow

• Ultra-Fast Transfer: 4ms changeover from grid to battery backup

Maintenance

• Daily: Verify solar production and battery charging status

• Weekly: Inspect wiring, array condition, and combiner boxes

• Annually: Clean panels, torque-check rail hardware, inspect grounding, update inverter firmware

Warranty

• Sol-Ark Inverters: 10 years

• Solar Panels: 30-year performance warranty
