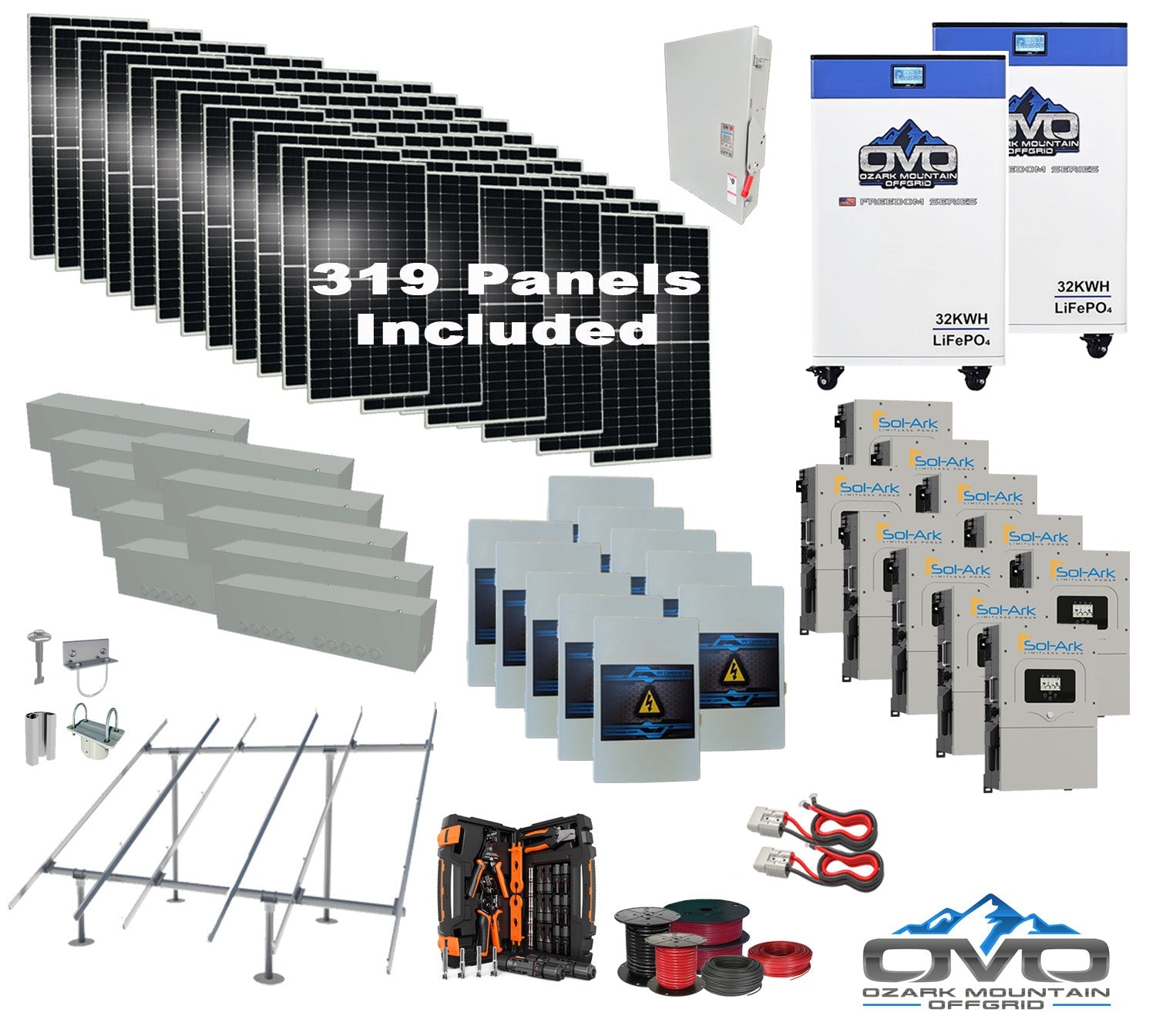

175KW Complete Offgrid Solar Kit + 10x 15K Sol-Ark Inverter + 2x 32kWh OMO 48V Freedom Series Lithium Battery +175.45KW Solar with Ground Mount and Wiring

The 175KW Complete Offgrid Solar Kit + 10x 15K Sol-Ark Inverter + 2x 32kWh OMO 48V Freedom Series Lithium Battery +175.45KW Solar with Ground Mount and Wiring  is engineered for large homes, farms, and high-demand facilities requiring full energy independence. Generating up to 789,525 watts per day with its massive solar array, this system supports properties using approximately 23,685 kWh per month. It includes ten Sol-Ark 15K inverters, dual 32kWh OMO Freedom Series lithium batteries (64kWh total storage), and a full Iron Ridge ground-mount system—built for long-term scalability in both panels and batteries.

Specifications

• Solar Panels: 319 × 550W bifacial mono panels (175,450W array)

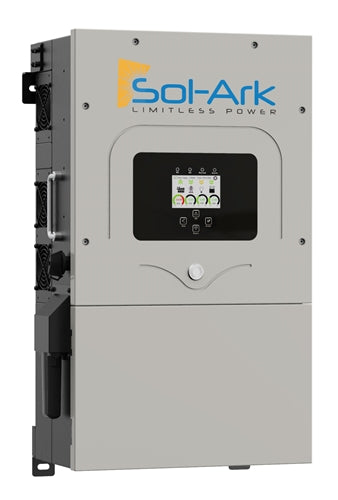

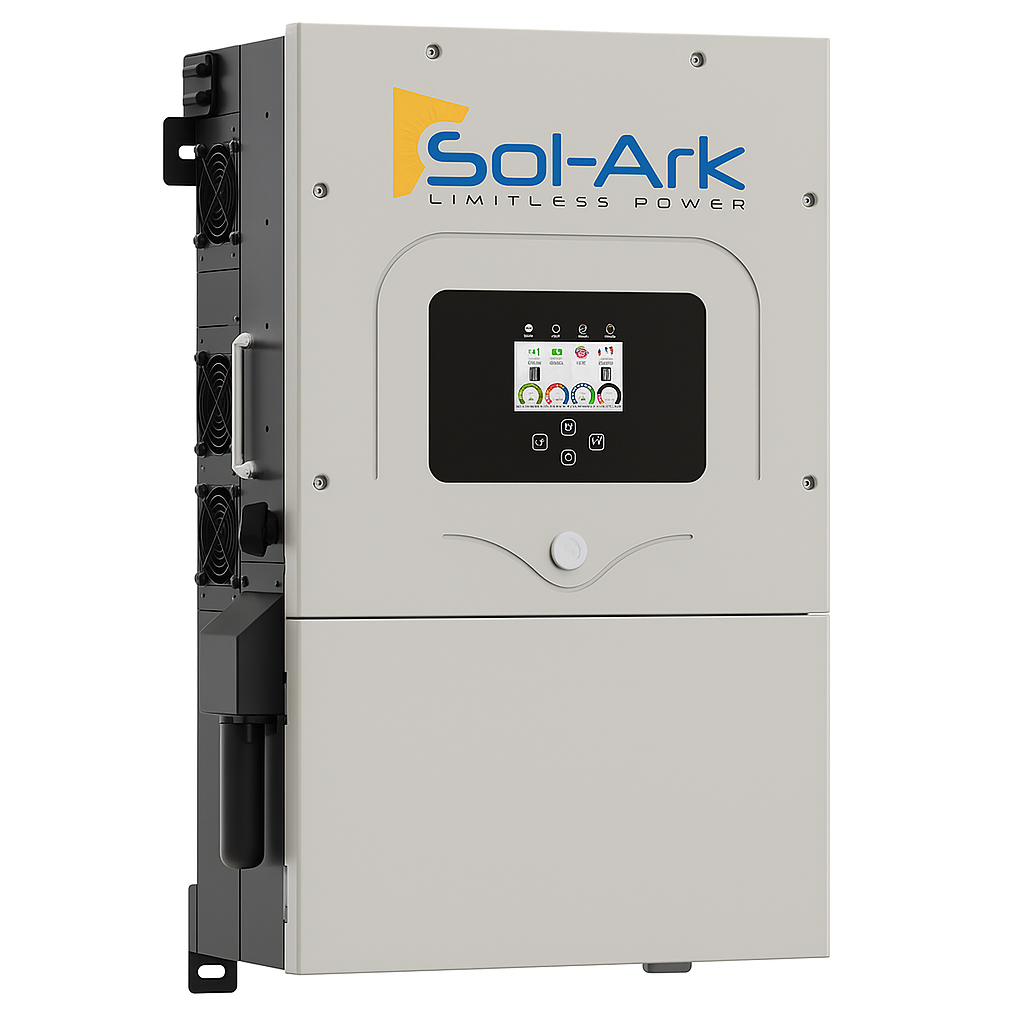

• Inverters: 10 × Sol-Ark 15K hybrid/off-grid all-in-one inverters with built-in MPPT charge controllers

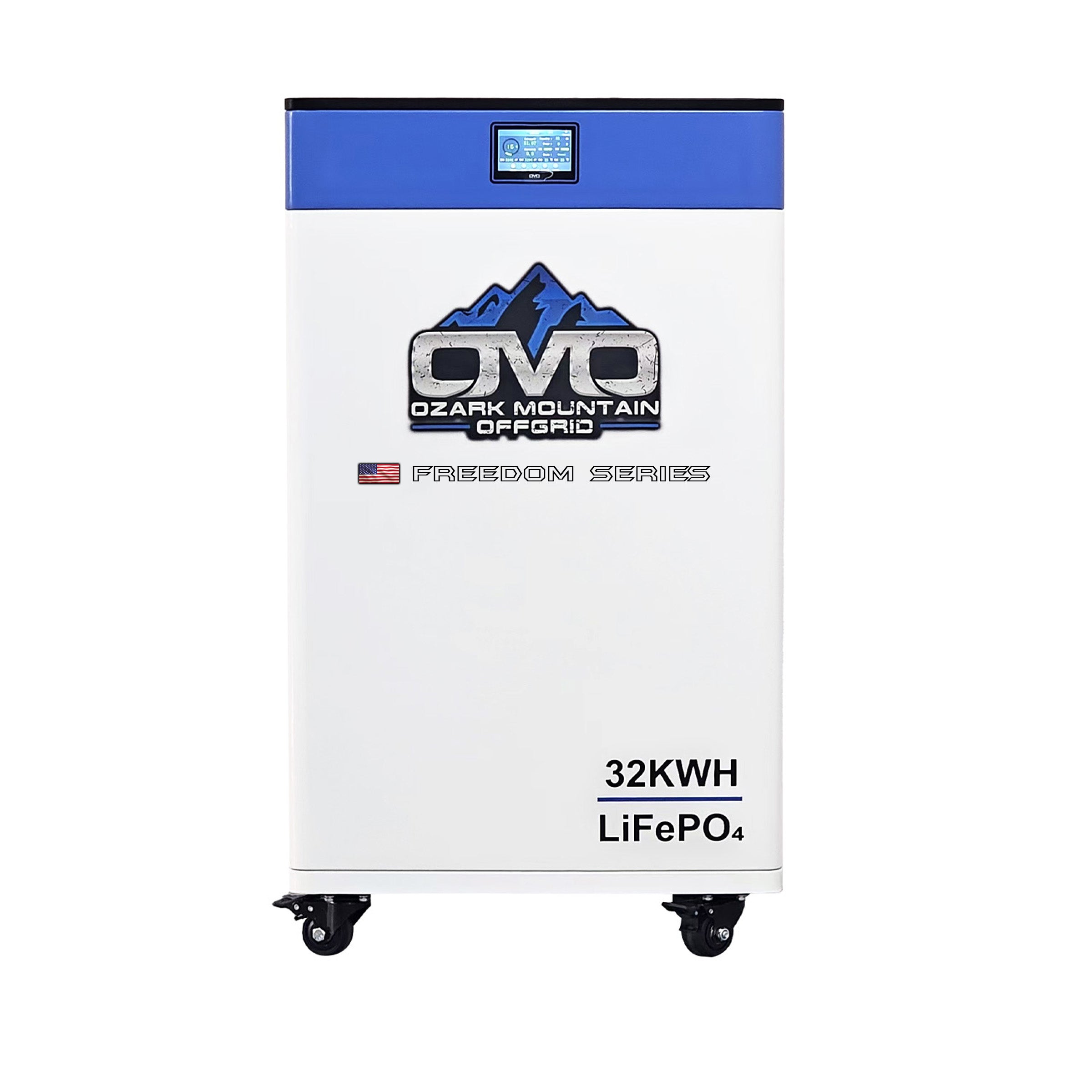

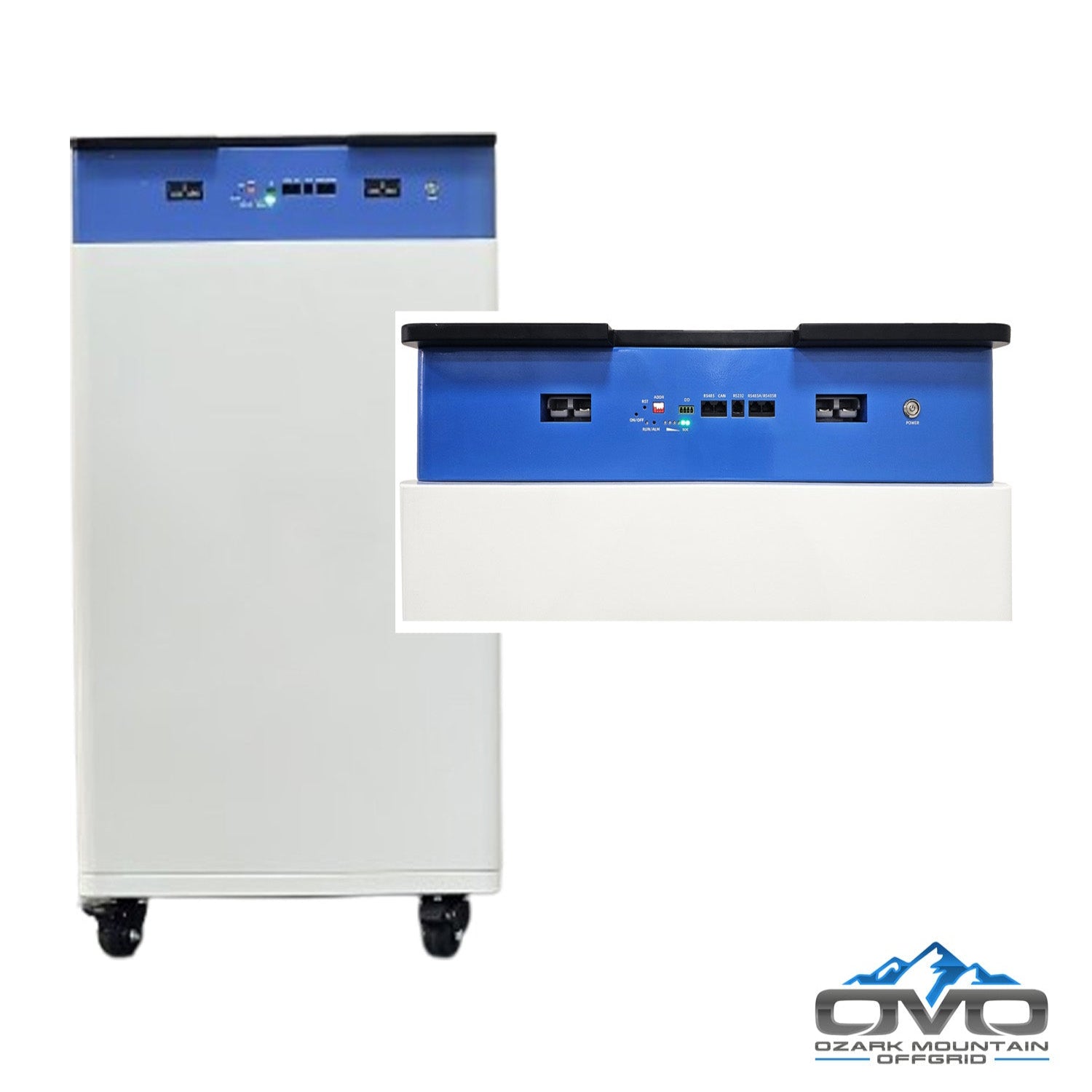

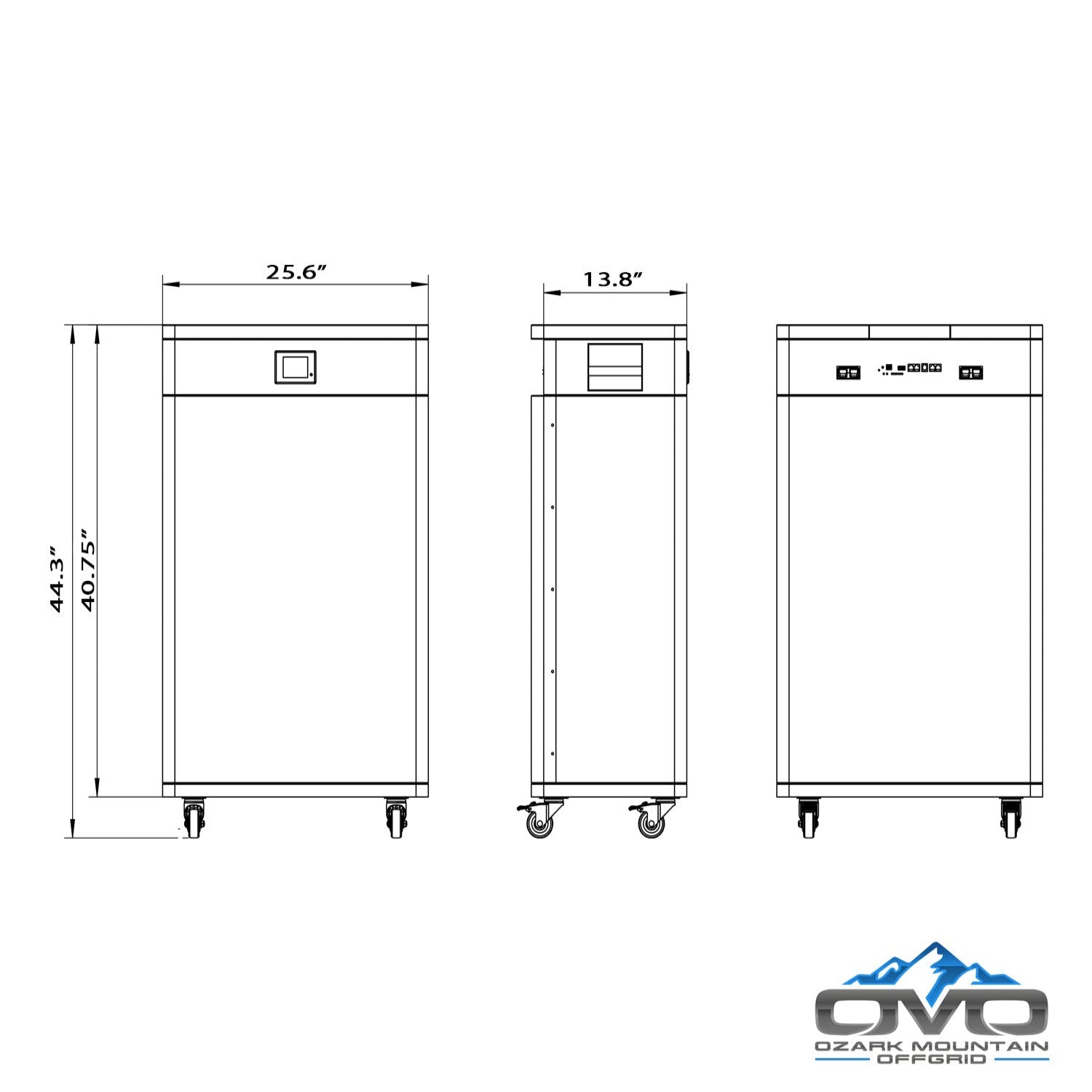

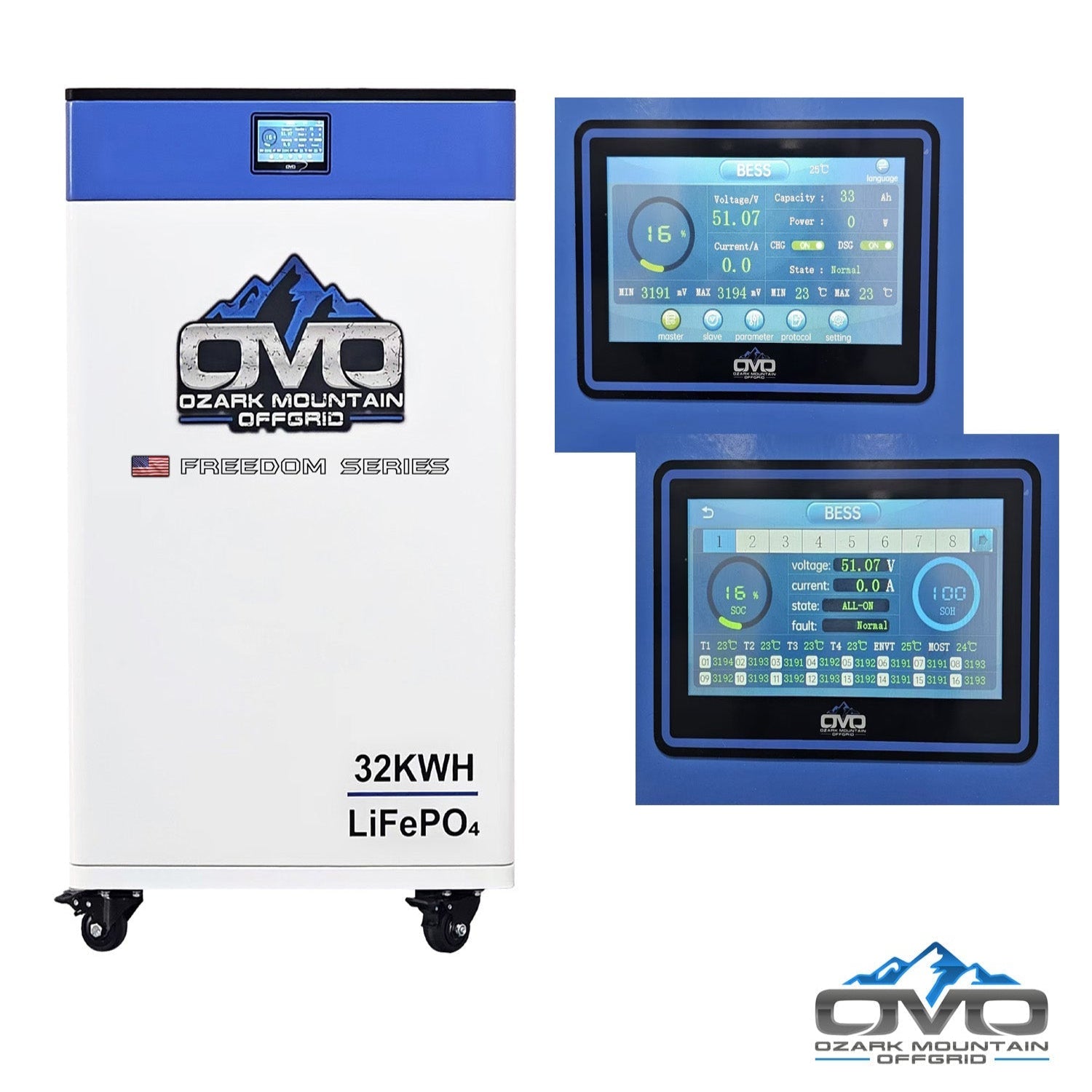

• Battery Storage: 2 × 32kWh OMO 48V Freedom Series heated lithium batteries with Bluetooth & LCD (64kWh total)

• Mounting System: Iron Ridge ground-mount rails, top caps, connectors, fasteners, bolts (3" pipe required, sourced locally)

• Cabling Included: 3 × 500' spools 10AWG MC4 PV wire, 3 × 100' spools 6AWG AC generator/output cabling, 3 × 20' spools 2/0 AC main line

• Battery Specs: Download Specification Sheet

Features

• Massive Energy Production: Up to 789,525 watts/day based on 4.5 sun hours—suitable for full off-grid estates

• High-Storage Battery Bank: 64kWh usable energy with expandable Freedom Series lithium batteries

• Bifacial Solar Technology: Double-glass panels capture up to 25% additional rear-side energy

• Extreme-Weather Rated: 5400 Pa snow load / 2400 Pa wind load with a 30-year power warranty

• Advanced Sol-Ark Controls: 120/240V split phase, generator support, WiFi, LCD touch screen, MPPT charging, and 97.5% efficiency

• System Scalability: Inverter stacking up to 8 units; panel and battery arrays can expand as needed

Maintenance

• Daily: Confirm inverter operation and battery charge levels

• Weekly: Inspect solar array, wiring runs, and combiner boxes

• Annually: Full system inspection; clean panels; test breakers; verify firmware updates

Warranty

• Sol-Ark Inverters: 10-year manufacturer's warranty

• Solar Panels: 30-year performance warranty; 5400 Pa snow / 2400 Pa wind rating
