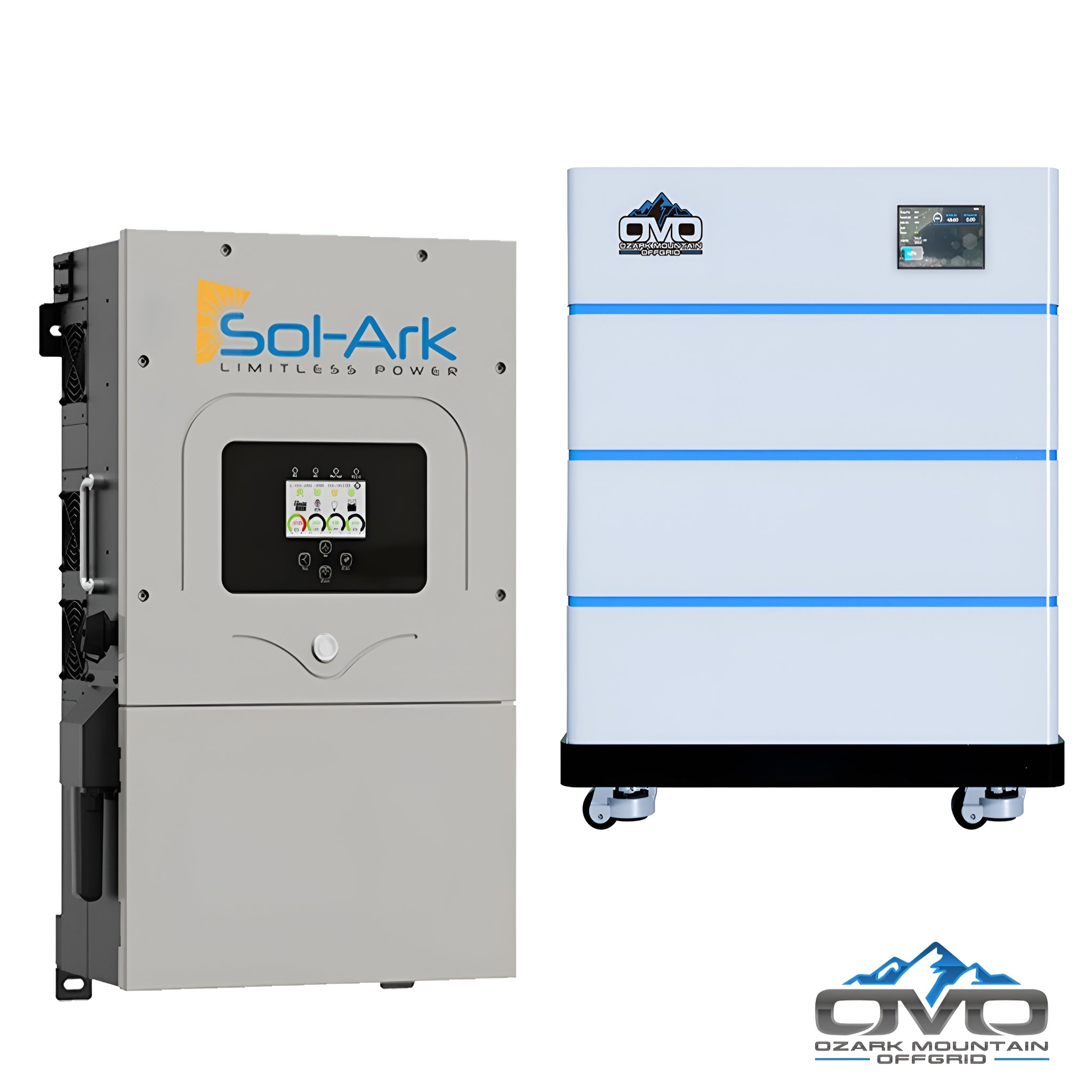

12KW Complete Offgrid Solar Kit - 15K Sol-Ark Inverter + 15.36KW OMO Stack Lithium Battery +13.2KW Solar with Ground Mount and Wiring

The 12KW Complete Offgrid Solar Kit - 15K Sol-Ark Inverter + 15.36KW OMO Stack Lithium Battery +13.2KW Solar with Ground Mount and Wiring is a complete starter system for a fully independent off-grid home. It combines a 15.36kW OMO stackable heated lithium battery bank, a powerful 15K Sol-Ark pure sine split-phase inverter (120/240V), and a 13.2kW bifacial ground-mount solar array. Producing around 59,400 watts of energy per day based on 4.5 hours of sun, this kit is ideal for mid-sized homes using about 1,700 kWh per month and is designed to be scaled up with additional panels or batteries as your energy needs grow.

Specifications

• Solar Array: 24× 550W bifacial mono double-glass solar panels (13,200W total)

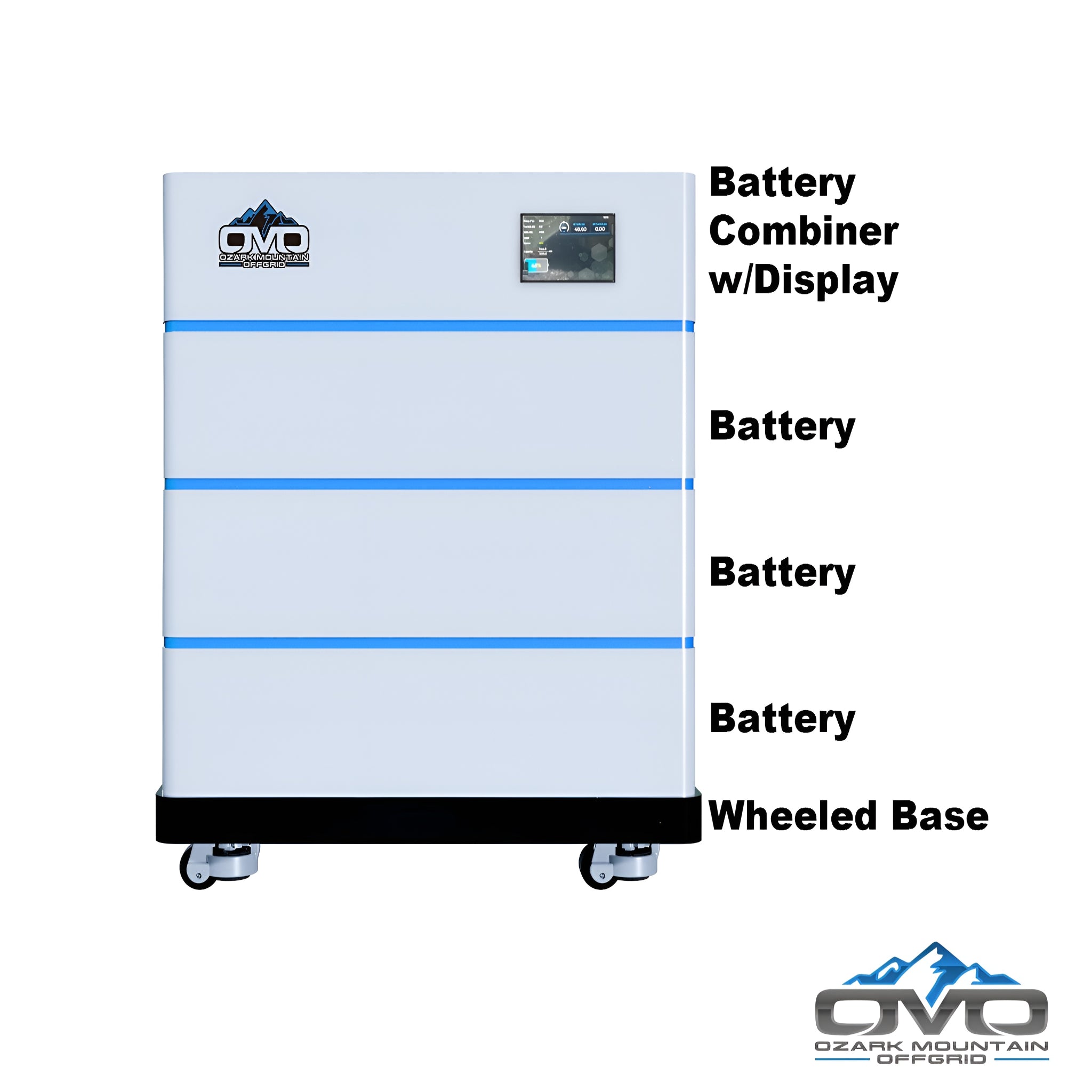

• Battery Bank: 3× OMO 51.2V 5.12kW stackable heated lithium batteries (15.36kW) with Bluetooth + OMO wheeled base

• Inverter: Sol-Ark 15K-2P-N pure sine split-phase inverter (120/240V), grid-tie or generator-input compatible

• Ground Mount System: Complete IronRidge ground-mount rails, top caps, rail connectors, fasteners & bolts (3" sch 40 pipe sourced locally)

• Balance of System: OMO stackable combiner with LCD, solar PV combiner box, wire gutter boxes, AC combiner box kit, 500' 10AWG MC4 solar wire, 100' 6AWG AC cable, 20' 2/0 AC main line, MC4 crimper tool set, and installation manual

Features

• Bifacial Double-Glass Panels: Up to 25% additional rear-side energy harvesting, excellent low-light performance, 5400 PA snow load / 2400 PA wind load, and 30-year power warranty

• Advanced Sol-Ark Inverter: 120/240V split phase, can be used with or without batteries, 48V battery input (flooded lead acid or lithium), grid-tie or off-grid, 9kW continuous / 16kW 10s surge output

• Smart Power Management: Built-in MPPT charge controller with 3× MPPT inputs, generator support, LCD touch screen, WiFi connectivity, 97.5% inverter efficiency, NEMA 3R outdoor-rated, parallel stacking up to 8 units with 4ms transfer time

• Stackable OMO Battery System: Heated, Bluetooth-enabled batteries with stackable combiner and wheeled base for modular expansion and easy service

• Ground-Mount Flexibility: IronRidge ground-mount system built around locally sourced 3" sch 40 pipe for robust, scalable installation

• Appliance & Home Coverage: Suitable for small homes, cabins, RVs, garages, and pole barns; runs most common loads including well pumps, washing machines, fans, TVs, lights, refrigerators, freezers, devices, and smaller AC systems

Maintenance

• Daily: Check solar production and battery state of charge on the inverter and OMO LCD; ensure ground-mount panels remain clean and unobstructed

• Weekly: Review Sol-Ark event logs, inspect combiner boxes and visible wiring, and verify proper operation of connected loads and generator (if used)

• Annually: Clean bifacial panel surfaces, check and re-torque mounting hardware, inspect conduit and terminations, and perform a full system health check with a qualified electrician if needed

Warranty

• Solar Panels: 30-year power production warranty

• Sol-Ark Inverter: 10-year manufacturer warranty
