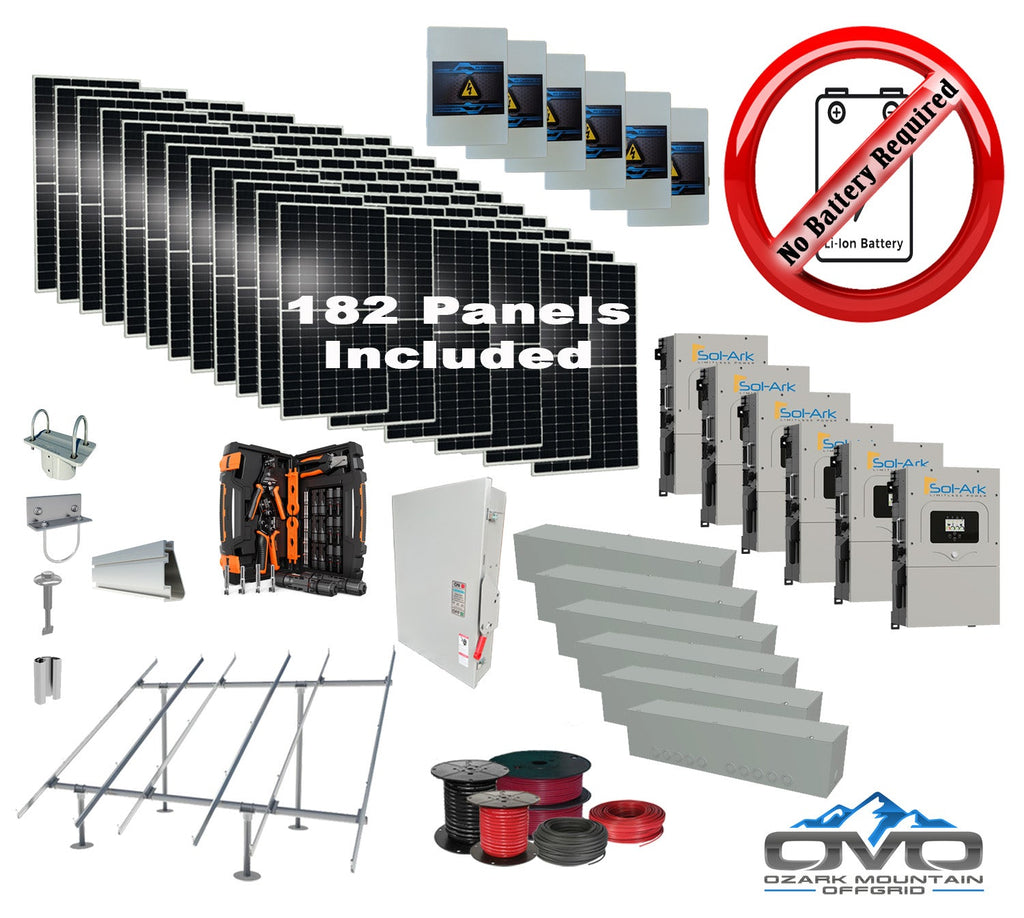

100KW Complete Offgrid Solar Kit + 6x 15K Sol-Ark Inverter +100.2KW Solar with Ground Mount and Wiring

The 100KW Complete Offgrid Solar Kit + 6x 15K Sol-Ark Inverter +100.2KW Solar with Ground Mount and Wiring is engineered for large homes, farms, and full off-grid living. This premium package includes 100.2KW of bifacial solar panels, a full ground-mount rail system, and six Sol-Ark 15K hybrid/off-grid inverters. Designed to produce approximately 450,450W per day (based on 4.5 hours of sunlight), this system supports properties using around 13,513 kWh per month and can be expanded with additional panels or batteries at any time. The Sol-Ark inverters allow the system to run with or without batteries, with optional 48V battery input available.

Specifications

• Solar Panels: 182× 550W bifacial mono panels (100,100W array)

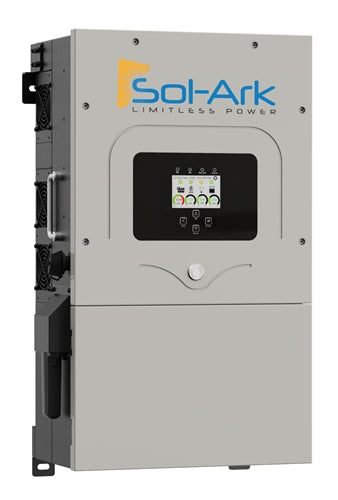

• Inverters: 6× Sol-Ark 15K hybrid/off-grid inverters with built-in MPPT

• Mounting System: Complete IronRidge ground-mount rails, top caps, connectors, fasteners, and bolts (customer supplies 3” SCH 40 pipe)

• Cabling: 2× 500' 10AWG MC4 PV cable spools, 2× 100' 6AWG AC/generator cable spools, 2× 20' 2/0 AC main line

• Additional Components: 6× PV combiner boxes, MC4 crimper tool set, wire gutter boxes, AC combiner kit, installation manual

Features

• Bifacial Double-Glass Panels: Up to 25% additional rear-side energy harvesting, improved performance in low-light, 5400 Pa snow load / 2400 Pa wind load, 30-year power warranty

• Off-Grid or Grid-Tie: System can run fully off-grid, grid-tied, or hybrid mode

• Battery Optional: Operates without batteries; supports 48V lithium or lead-acid batteries

• Advanced Sol-Ark System: 3× MPPT charge controllers, generator support, WiFi monitoring, LCD touchscreen

• High Efficiency: 97.5% inverter efficiency with transformerless DC architecture

• Scalable System: Parallel stacking up to 8 Sol-Ark units; future-proof for larger arrays or battery expansion

Maintenance

• Daily: Keep panels free of heavy debris; monitor system dashboard

• Weekly: Inspect cabling, connectors, and inverter ventilation

• Annually: Perform full array inspection, ground-mount review, and inverter diagnostics

Warranty

• Panels: 30-year power warranty

• Sol-Ark Inverters: 10-year manufacturer warranty

Installation available upon request. Contact us for custom installation pricing in your area.
